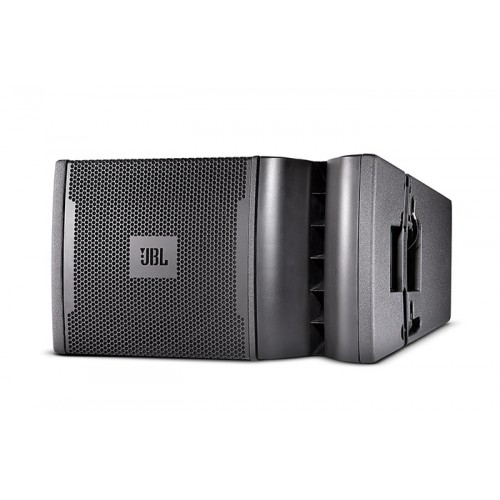

VRX932LAP

VRX932LAP

0 yorum  0 yorum  |  Yorum Yap

Power Rating 1750 Watts Peak
875 Watts Continuous
  Frequency Range 57 Hz - 20 kHz
(-10 dB)
  Dimensions
(H x W x D)		 349 mm x 597 mm x 444 mm
(13.75 in x 23.5 in x 17.5 in)
  Frequency Response 75 Hz - 20 Hz
(+/-3db)
  Maximum Peak Output 136 dB SPL at 1m
  Coverage Pattern 100 x 15 nominal
  DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance) LF: 750 Watts, HF: 125 Watts
  DPC-2 Output Sectoin LF: Dual-Bridged Technology™, Class D
  Audio Input Connector XLR with loop through
  LF Driver 1 x JBL 2262FF 305 mm (12 in) neodymium magnet
  HF Driver 3 x JBL 2408J, 38 mm (1.5 in)
  User Controls Input Attenuator (0-16 dB)
  Signal Processings DSP based, resident in Input Module
  AC Power Operating Range 90-132 VAC or 216-264 VAC, 50/60 Hz
  AC Input Connector Neutrik PowerCon (NAC 3MPA)
  AC Loop Through Connector Neutrik PowerCon (NAC 3MPB)
  AC Current Requirements 6A per system at 120V, 3A per system at 240V
  Enclosure 25/15 mm, 11-ply birch plywood
  Suspension / Mounting Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting
  Finish Black DuraFlex™ finish
  Grille Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam
  Net Weight 24 kg (52 lb)
  Optional Accessories VRX-AF: Suspension array frame
