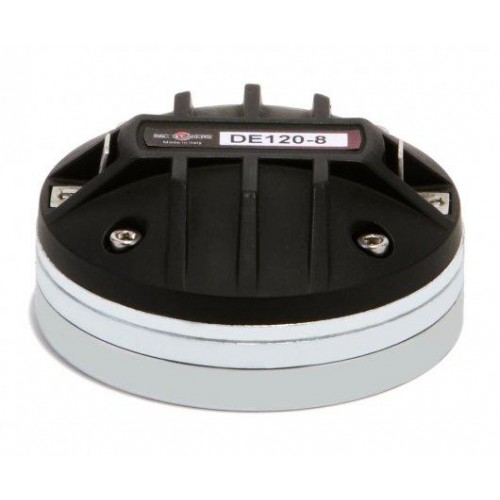

DE-120

DE-120

0 yorum  0 yorum  |  Yorum Yap
40 W continuous program power capacity 1" horn throat diameter 36 mm (1.4 in) aluminium voice coil Mylar diaphragm 1500 - 18000 Hz response 106 dB sensitivity

TEKNİK ÖZELLİKLER

Throat Diameter 25 mm (1 in)
Nominal Impedance 8 ohm
Minimum Impedance 8 ohm
Nominal Power Handling (AES) 20 W
Continuous Power Handling 40 W
Sensitivity (1W/1m) 106 dB
Frequency Range 1.5 - 18 kHz
Recommended Crossover 2 kHz
Voice Coil Diameter 36 mm (1.40 in)
Winding Material Aluminium
Inductance 0.14 mH
Diaphragm material Mylar
Flux Density 1.9 T
Magnet Material Neodymium Ring
Weight 0.45 kg
