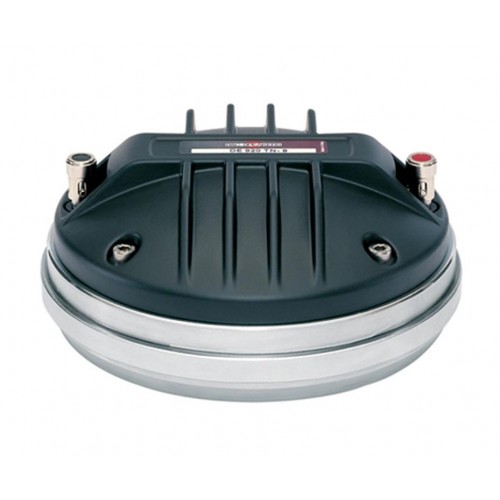

DE-920 TN

DE-920 TN

0 yorum  0 yorum  |  Yorum Yap
220 W continuous program power capacity 1.4” horn throat diameter 75 mm (3 in) aluminium voice coil Titanium diaphragm 500 – 18000 Hz response 108.5 dB sensitivity Neodymium magnet assembly with shorting copper cap

TEKNİK ÖZELLİKLER

Throat Diameter 36 mm (1.4 in)
Nominal Impedance 8 ohm
Minimum Impedance 7.8 ohm
Nominal Power Handling (AES) 110 W
Continuous Power Handling 220 W
Sensitivity (1W/1m) 108.5 dB
Frequency Range 0.5 - 18 kHz
Recommended Crossover 1.2 kHz
Voice Coil Diameter 75 mm (3.00 in)
Winding Material Aluminium
Inductance 0.14 mH
Diaphragm material Titanium
Flux Density 2.05 T
Magnet Material Neodymium Ring
