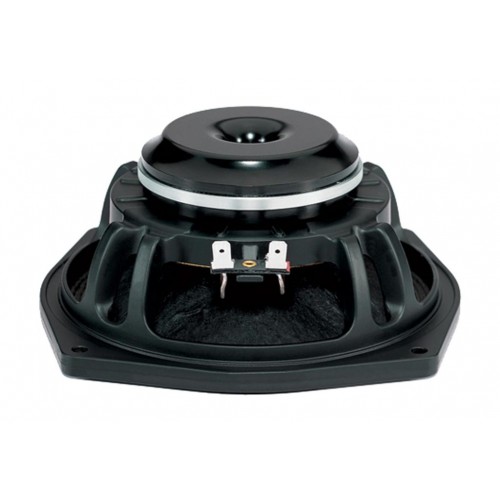

6-MDN44

6-MDN44

0 yorum  0 yorum  |  Yorum Yap
300 W continuous program power capacity 44 mm (1.7 in) aluminium voice coil 150 - 6000 Hz response 96.5 dB sensitivity Neodymium magnet allows a very light yet powerful motor assemb

TEKNİK ÖZELLİKLER

Nominal Diameter 170 mm (6.5 in)
Nominal Impedance 8 ohm
Minimum Impedance 6.5 ohm
Nominal Power Handling (AES) 150 W
Continuous Power Handling 300 W
Sensitivity (1W/1m) 97 dB
Frequency Range 150 - 6000 Hz
Voice Coil Diameter 44 mm (1.7 in)
Winding Material Aluminium
Former Material Glass Fibre
Magnet Material Neodymium Ring
Winding Depth 9.5 mm (0.37 in)
Magnetic Gap Depth 6 mm (0.25 in)
Flux Density 1.45 T
