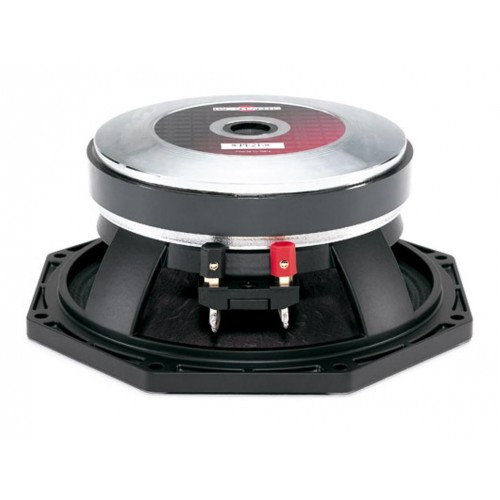

8-PE21

8-PE21

0 yorum  0 yorum  |  Yorum Yap
400 W continuous program power capacity 50 mm (2 in) copper voice coil 90 – 5000 Hz response 98 dB sensitivity

TEKNİK ÖZELLİKLER

Nominal Diameter 200 mm (8 in)
Nominal Impedance 8 ohm
Minimum Impedance 7.2 ohm
Nominal Power Handling (AES) 200 W
Continuous Power Handling 400 W
Sensitivity (1W/1m) 98 dB
Frequency Range 90 - 5000 Hz
Voice Coil Diameter 50 mm (2 in)
Winding Material Copper
Former Material Kapton
Magnet Material Ceramic Ring
Winding Depth 9.5 mm (0.37 in)
Magnetic Gap Depth 8 mm (0.31 in)
Flux Density 1.25 T
