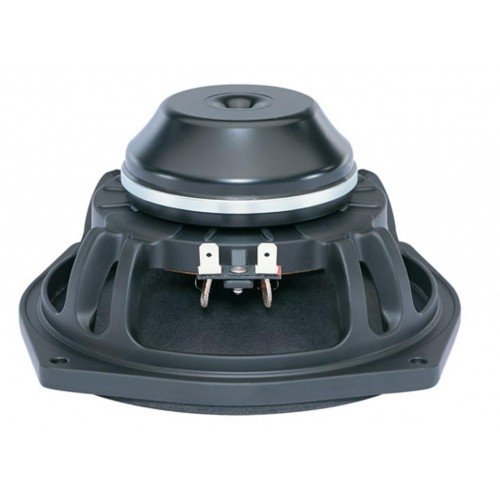

6-NDL38

6-NDL38

0 yorum  0 yorum  |  Yorum Yap
38 mm (1.5 in) copper voice coil 70 - 6000 Hz response 92 dB sensitivity Neodymium magnet allows a very light yet powerful motor assembly Aluminium demodulating ring allows a very low distortion figure 300 W continuous program power capacity

TEKNİK ÖZELLİKLER

Nominal Diameter 170 mm (6.5 in)
Nominal Impedance 8 ohm
Minimum Impedance 6 ohm
Nominal Power Handling (AES) 150 W
Continuous Power Handling 300 W
Sensitivity (1W/1m) 92 dB
Frequency Range 70 - 6000 Hz
Voice Coil Diameter 38 mm (1.5 in)
Winding Material Copper
Former Material Kapton
Magnet Material Neodymium Ring
Winding Depth 12 mm (0.5 in)
Magnetic Gap Depth 6 mm (0.25 in)
Flux Density 1.15 T
